***Important, to fit this you must disassemble your wheel. This is done entirely at your own risk and will probably void your warranty***
This mount/adaptor will allow you to fit the standard Fanatec Clubsport shifters to your Fanatec CSL GT3 wheel. the shifters are not included, they are available here https://fanatec.com/eu-en/shifters-others/clubsport-magnetic-paddle-module
or the Simube version https://simube.com/products/clubsport-magnetic-paddle-module
The clubsport shifters have a 6 pin connector, but the mclaren wheel just has a 2 pin connector, so an adaptor cable is required.
you can make your own adaptor cables*, or buy the paddle mount and my adaptor cables. My cables will work for either the V1 or V2 wheel. the V2 has a JST connector that my adaptor will just clip into. the V1 wheel you will need to de-solder the existing wires and solder new wires on. easy if you are confident with a soldering iron, but entirely at your own risk.
see photos for instructions on how to install
the install is fully reversable
This item is 3d printed so may have slight imperfections as is the way with 3D prints. the carbon effect texture on the product is from printing on a carbon textured print bed

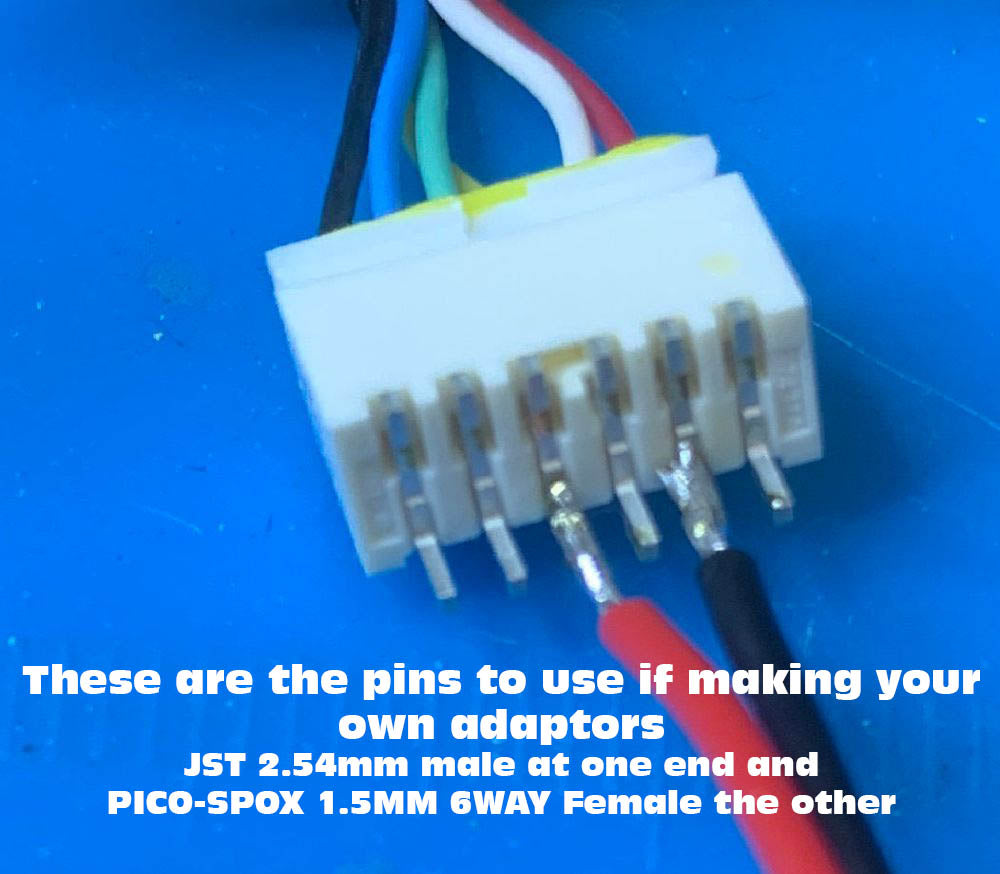

*if you want to make your own adaptor cables you will need JST 2.54mm male at one end and PICO-SPOX, 1.5MM, 6WAY Female the other. (connect white and green wire pins to the JST connector, it doesn't matter what way round the JST connector is) see image for the 2 pins to use
