Rumble Kit for Thrustmaster Fanatec Moza and Logitech Pedals T3PA TLCM G25 G27 G29 G920 G923 CSL Elite Clubsport v3 CR-P Heusinkveld Sprint

Tutorial: https://youtu.be/wcWbjlMwF7Q

This kit will enable pedal feedback by means of rumble motors. You can feel kerb vibrations, engine revs, when the ABS kicks in, etc.

This is PC only and is controlled through the free "SimHub" software.

The Motor mounts have been tested with Logitech pedals, including the G PRO (Choose the G PRO option if you have these), Fanatec CSL, CSL Elite v1 & v2, CSR, Fanatec Clubsport V3, Heusinkveld Sprint, and Thrustmaster T3PA & T-LCM pedals. Moza SR If you have a different model of pedals and would like a mount made for your model please message me.

If keeping the stock motor on the Fanatec Clubsport V3 Pedals these mounts will also mount to the side so you can have 2 motors mounted to each pedal

Note for Logitech G Pro pedals (The expensive ones), these mount using the top hole in the pedal face as shown in photo, so if you have your pedals set lower than default this will not suit you

Note: red option is for the motor mounts only and is only an option for the Clubsport v3

There are various options available to you

Kit 1: I supply just the 3d printed case, Motor mounts, and instructions,

you source the electronic parts and assemble yourself. You will need:

Arduino nano

L298N Motor Board

DC Power Connectors x3 (12mm Hole)

Xbox Controller Rumble Motors

Wires

Shrink Tubing or insulating tape

Solder

Soldering iron

4x 10mm M4 screws (for Logitech version)

USB Cable (Mini Connector)

5v Power supply (You can use an additional USB Cable or a phone charger)

an hour or two to assemble

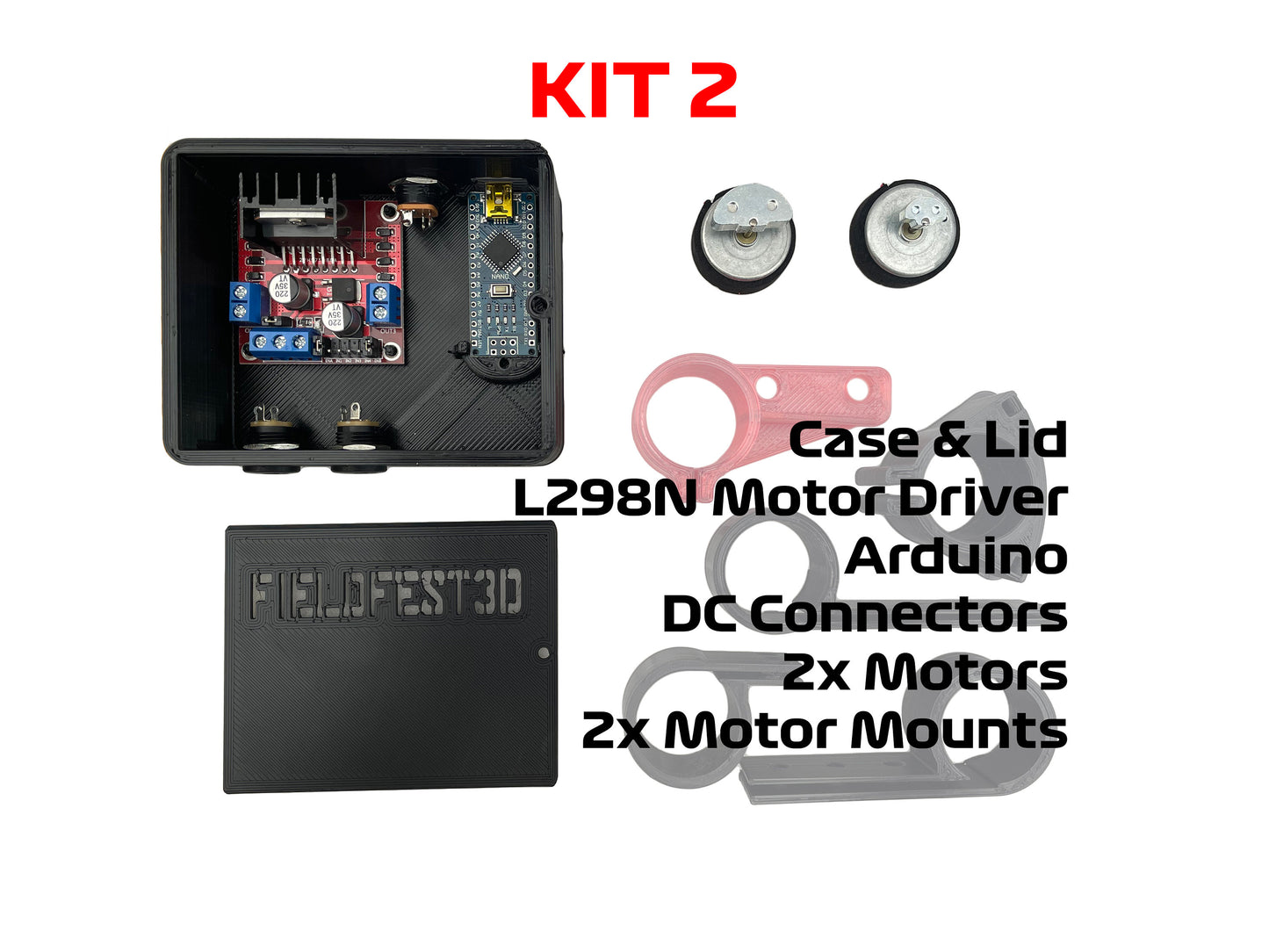

Kit 2: I supply most of what you need:

3D Printed Case

3D Printed Motor Mounts

Arduino nano (Chinese)

L298N Motor Board

DC Power Connectors x3 (12mm Hole)

Xbox Controller Rumble Motors

You Supply:

USB Cable (Mini Connector)

4x 10mm M4 Screws (For Logitech Version)

5v Power supply (You can use an additional USB Cable or a phone charger)

Wires

Shrink Tubing or insulating tape

Solder

Soldering iron

Kit 3: I build it for you (If kit 3 is not available then I am currently out of stock)

Who are you?

I am comfortable with following wiring diagrams and soldering and I understand how live and earth works with electricity- Buy Kit 1 or 2

I am not comfortable doing the above- Buy Kit 3

Dispatch time will be affected by the option you choose, for Kit 3 please allow 2 weeks before dispatch.

Please note: I use chinese made arduino copies. Recent windows updates caused driver issues with these but simhub has fixed the issue. Please make sure you have the latest version of simhub. there will be a warning come up saying you are using a fake arduino though. I could supply genuine arduinos, but they cost £10 more than the chinese ones for no extra functionality and im trying to keep the cost as low as I can for you. If you would prefer to source your own genuine Arduino Nano please leave a note on the order and we will refund you £5 and not send the chinese arduino

Please note this is a DIY Kit. even if you purchase the pre assembled kit, that does not mean you are purchasing a warranteed product. if you pull cable out or a component breaks, then it is the buyers responsability to repair the product. I am available to help but will not be liable for any costs involved. It is also the end users' responsibility to install and configure Simhub for the motors to work. My install video covers the basics, but there are many online tutorials in how to use Simhub online
